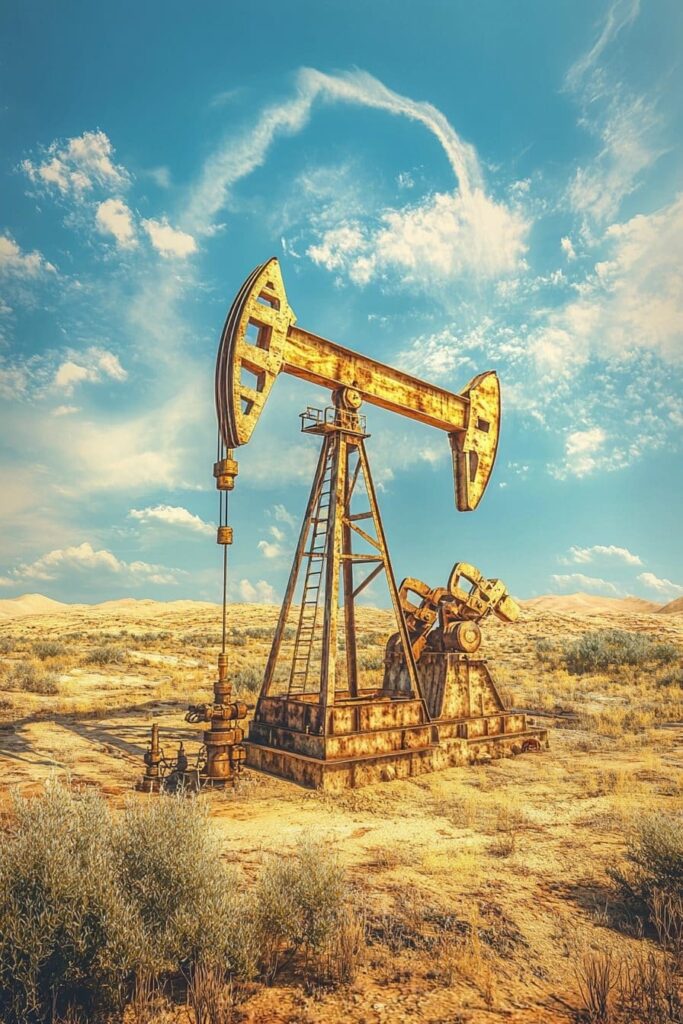

Driving through oil fields, the rhythmic motion of pumpjacks—those towering metal contraptions that bob up and down like mechanical birds—is a familiar sight. These machines, often called “nodding donkeys,” are the backbone of extracting oil from reservoirs that don’t have enough natural pressure to push the crude to the surface. But how do they work?
In essence, an oil pumpjack is a type of reciprocating pump system designed to lift crude oil from underground reservoirs to the surface. It uses a combination of mechanical motion, fluid dynamics, and energy transfer to extract oil. Let’s break it down.
The Basics of Pumpjack Operation
A pumpjack operates through a series of coordinated components that transform rotary motion into linear motion. The process starts with a power source—usually an electric motor or internal combustion engine—that drives the system.
- Prime Mover
The pumpjack is powered by a motor that generates rotational energy. This energy powers the gearbox and crank system to initiate the pumping motion. - Gearbox and Crank
The motor’s rotational motion passes through a gearbox, which reduces the speed and increases torque. The crank system converts this rotational motion into a vertical, reciprocating motion—key for mimicking a pumping action. - Walking Beam and Pitman Arm
The walking beam, a long horizontal arm, rocks up and down as the crankshaft rotates. Connected to the crank by the Pitman arm, it serves as the central mechanism of the pumpjack, distributing motion to the pump. - Horsehead and Polished Rod
The horsehead, the curved front end of the walking beam, is attached to a polished rod. This rod moves vertically in sync with the beam, connecting the surface components to the subsurface pump. - Subsurface Pump
Below ground, the polished rod connects to a pump assembly within the wellbore. This pump consists of a plunger and barrel system. As the rod moves up and down, the plunger inside the barrel lifts the crude oil toward the surface.
The Step-by-Step Process
- Downstroke: The horsehead pulls the polished rod downward, creating suction within the subsurface pump. This suction draws oil into the pump barrel through a series of valves.
- Upstroke: The horsehead lifts the polished rod, forcing the plunger upward. The oil collected in the pump barrel is pushed upward, moving closer to the surface.
- Oil Collection: The oil travels through tubing to a storage tank or pipeline system at the surface, ready for further processing or transport.
Efficiency and Challenges
Pumpjacks are an efficient solution for extracting oil in “mature” fields, where natural reservoir pressure has diminished. However, they require regular maintenance to ensure the subsurface pump, motor, and rods operate smoothly. Corrosion, wear, and changes in well pressure are common challenges.
A Testament to Mechanical Ingenuity
Oil pumpjacks may seem simple in design, but their precise mechanics make them indispensable in the oil industry. Whether standing solitary in the desert or clustered in vast fields, these machines embody a blend of rugged functionality and engineering brilliance, quietly working to fuel the world.
